Chassis Specifications
Every Vanna van starts with a proven platform. We build on Mercedes-Benz Sprinter and Ford Transit chassis because they offer the reliability, performance, and flexibility needed for true off-grid, four-season travel.
Chassis Options
Choose the right foundation for your build
The chassis you choose impacts everything from layout and storage to drivability and interior space. Whether you want a compact setup for easy maneuvering or a longer platform for maximum living space, each option gives you a different way to experience life on the road.
Mercedes-Benz Sprinter
Please note that the following exterior dimensions are only a guideline and refer to the chassis prior to upfitting, including roof accessories.
Known for premium performance, strong diesel options, and advanced 4×4 capability, the Sprinter is built for those who want to go further with confidence.
Mercedes Sprinter 144 High Roof
A compact and capable option that is easy to drive and park while still offering a functional interior layout. Ideal for solo travelers or couples who want flexibility without sacrificing core features.
Exterior
Wheelbase: 12’ 0”
Height: 8’ 11.5”
Width: 7’ 8.5”
Length: 19’ 5.5”
Interior
Post-Build Height: 6’ 1.5”
Post-Build Width: 5’ 8”
Length: 11’ 1”
Cubic Feet: ~281-374 cubic ft.
Mercedes Sprinter 170 High Roof
A balanced option that provides additional living space and storage while maintaining good drivability. One of the most popular choices for extended travel.
Exterior
Wheelbase: 14’ 2”
Height: 8’ 11.3”
Width: 7’ 8.5”
Length: 22’ 10.3”
Interior
Post-Build Height: 6’ 1.5”
Post-Build Width: 5’ 8”
Length: 14’ 6”
Cubic Feet: ~430 – 488 cubic ft.
Mercedes Sprinter 170 EXT High Roof
Maximum interior space on the Sprinter platform. Best for those who want a larger kitchen, expanded storage, or a more residential feel inside the van.
Exterior
Wheelbase: 14’ 2”
Height: 8’ 11”
Width: 7’ 8.5”
Length: 24’ 2”
Interior
Post-Build Height: 6’ 1.5”
Post-Build Width: 5’ 8”
Length: 15’ 9”
Cubic Feet: 469 – 533 cubic ft.
Ford Transit
Please note that the following exterior dimensions are only a guideline and refer to the chassis prior to upfitting, including roof accessories.
The Transit offers a wider body, taller interior height, and a smooth driving experience. It is a great option for those prioritizing interior space and value.

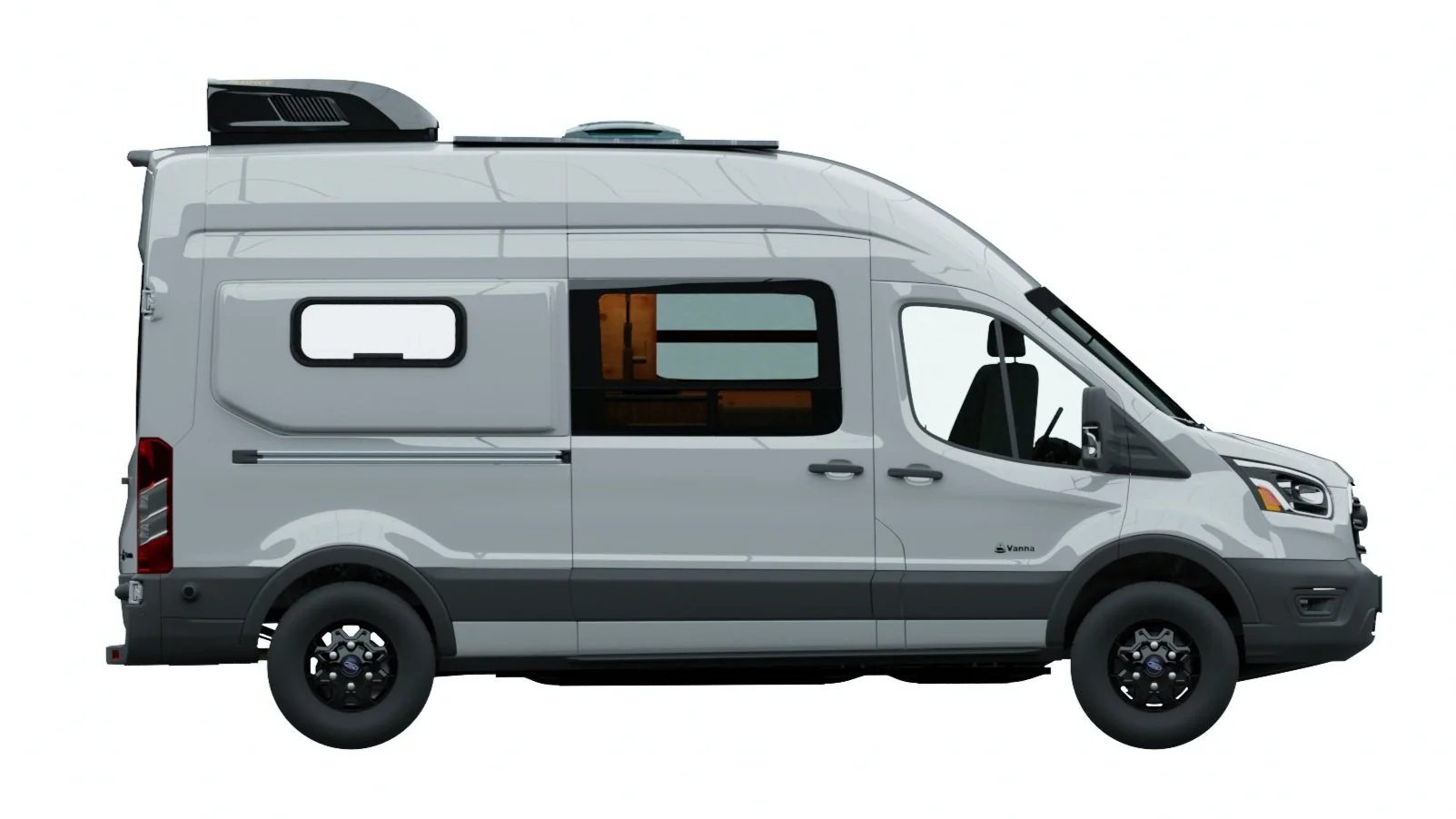

Ford Transit 148 High Roof
A versatile mid-length option with excellent interior standing height. Ideal for travelers who want comfort in a manageable size.
Exterior
Wheelbase: 12’ 4”
Height: 9’ 1.6”
Width: 8’ 1.4”
Length: 19’ 7.5”
Interior
Post-Build Height: 6’ 4.5”
Post-Build Width: 5’ 6”
Length: 11’ 9.7”
Cubic Feet: ~404 cubic ft.
Ford Transit 148 EXT High Roof
The longest Transit option, offering expanded cargo and living space. Perfect for maximizing layout flexibility, storage, and overall livability.
Exterior
Wheelbase: 12’ 4”
Height: 9’ 2.4”
Width: 8’ 1.4”
Length: 21’ 11.9”
Interior
Post-Build Height: 6’ 4.5”
Post-Build Width: 5’ 6”
Cubic Feet: ~487 cubic ft.
Cargo Bed Length: 14’ 2.2”
